Water Jet Cutter, C-Jet Series

Water Jet Cutter E Series CJ-330E & CJ-135E

Engine type WATER JET CUTTER having flexible function of Pressure and Flow volume

Catalogue

Feature

  1. New design acheaved highly economical and durable.
    Adopted newly developped planger pump having high performance.

  2. New body standerdized anti corrosive paint.

  3. Gus Emission controlled engine.

  4. The specifications of Pressure, Flow volume, Output power etc are followed to the Japanese Government standard.

Function

  1. Adopted the Pressure guage, easily and smoothly adjustable upto the Maximum output pressure of 14.7MPa.

  2. New body dsigned for easy maintenance.

  3. Compact and light weight body for easy transportation.

  4. Adopted Biodegradable Oil.

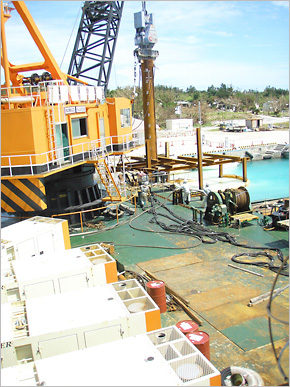

Joint Method of Water Jet Cutter & Vibro Hammer

Dimension


Specification

Model CJ-135E CJ-330E
Weight 3,400kg 9,300kg
DimensionL x W x H 3,400 x 1,350 x 1,500 5,500 x 1,850 x 1,900
PumpOutput Volume 100 – 325L/min 300 – 900L/min
Output Pressure 4.9 – 14.7MPa 4.9 – 14.7MPa
Intake size (Diameter) 65mm (21/2″) 100mm (4″)
Output size(Diameter) 25mm (1″) 40mm (11/2″)
EngineOutput capacity 102kW 243kW
Fuel tank capacity 150L 400L
Fuel consumption 23L/h 40L/h
